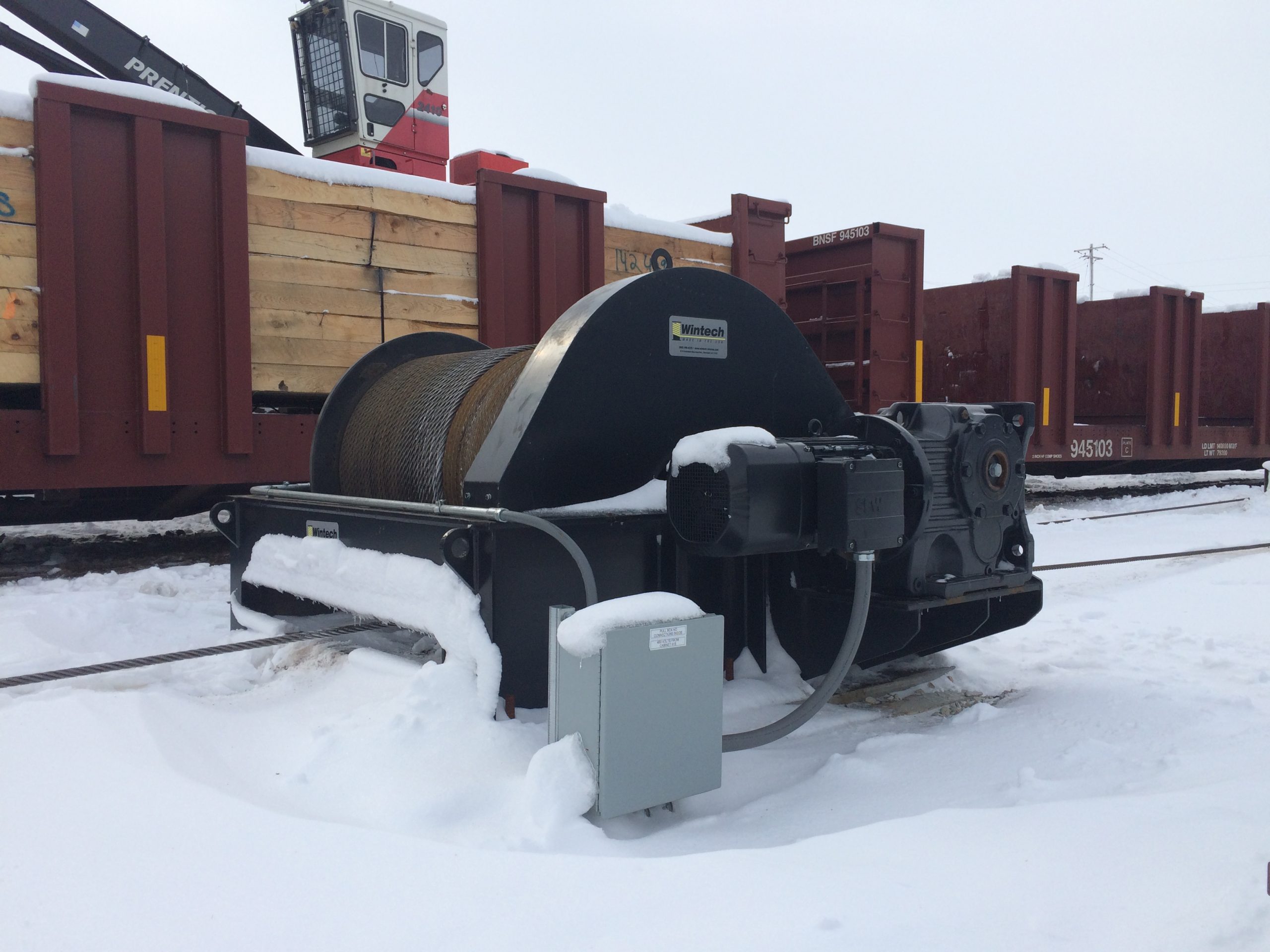

Wintech Rail Car Mover

Electric Winch Systems for Safe, Controlled Railcar Spotting

Wintech’s Rail Car Moving Systems are engineered to handle the demanding task of spotting railcars with precision and safety. These systems use electric winches with variable speed control, integrated braking, and rugged construction to move railcars in one or two directions depending on your operational needs.

System Configurations

Wintech offers multiple configurations to suit different applications:

  • Single Winch / One Direction Ideal for straightforward push-pull operations.
  • Single Winch / Two Direction (Grooved Drum) One cable on, one cable off design for bi-directional movement.
  • Two Winches / Two Direction (Smooth Core Drum) One winch pulls while the other freespools, maintaining tension and control.

Technical Specifications

  • Linepull Range: 5,000 lbs to infinity
  • Linespeed Range: 5 fpm to 30 fpm
  • Drum Capacity: Varies by application
  • Gear System: Parallel helical gear reducer with final chain drive or direct drive
  • Frame Construction: Fabricated steel, sandblasted and painted with Wintech marine-duty coating
  • Brake System: 16″ bronze drag brake for controlled tension during freespooling optional

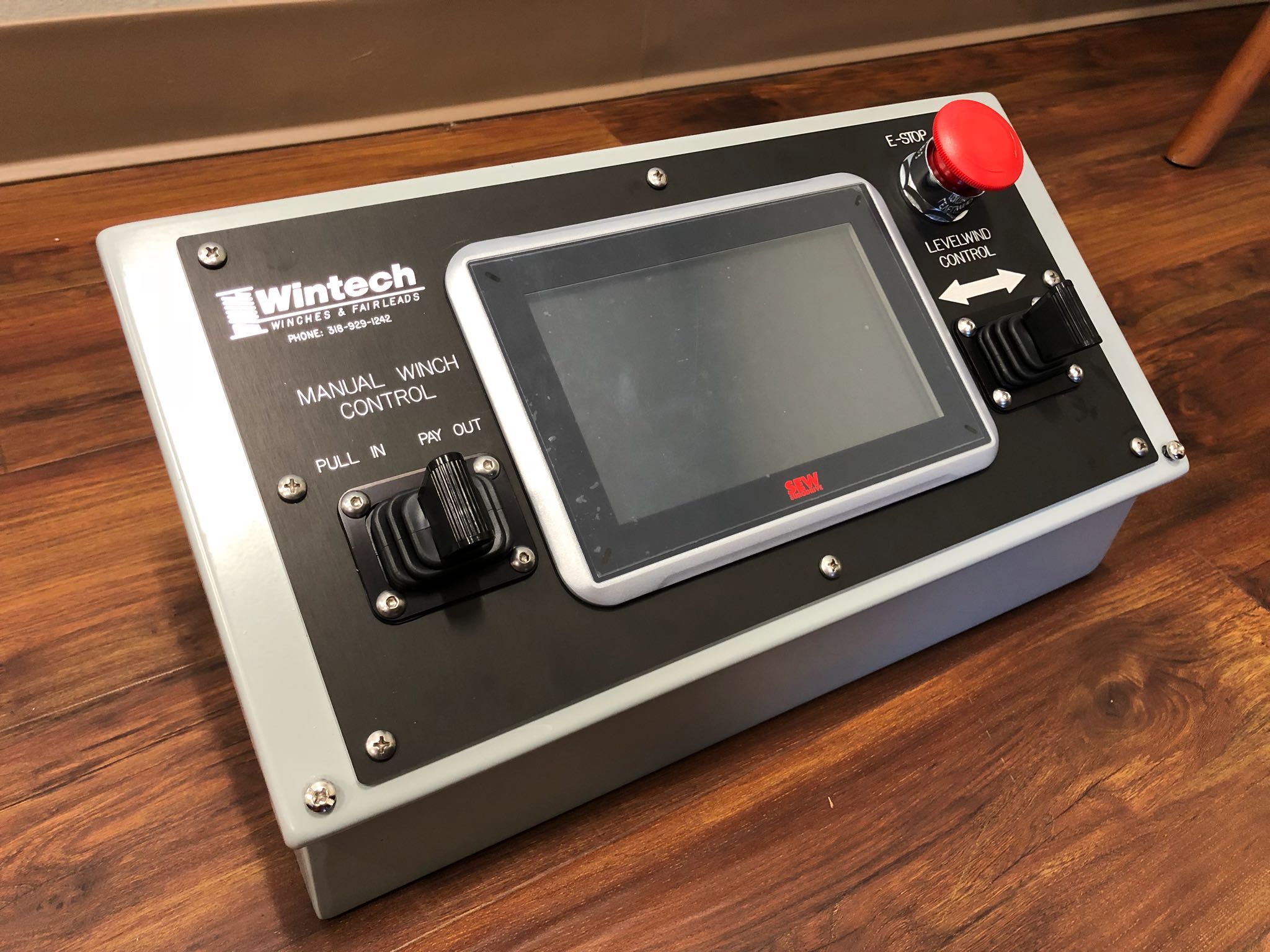

Integrated Controls

  • Manual & Auto Modes: Operators can manually control winches for setup or switch to automatic joystick control for movement.
  • Dual Potentiometer Panel: Allows fine-tuning of torque and speed.
  • Failsafe Braking: Automatically engages during power loss or emergency stop.
  • Zero-Speed Holding: Maintains full load at zero speed for long-duration positioning.
  • Remote Control Optional

Built for Industrial Use

  • Designed for indoor or outdoor environments
  • Ideal for rail yards, loading docks, and industrial facilities
  • Also adaptable for barge moving applications

Wintech’s Rail Car Movers combine durability, precision, and safety in a fully electric system that minimizes maintenance and maximizes control. If you need help selecting the right configuration or comparing it to barge systems, I can walk you through it.

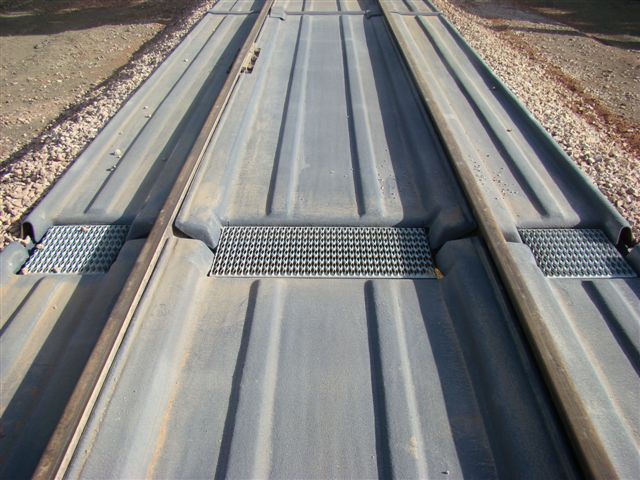

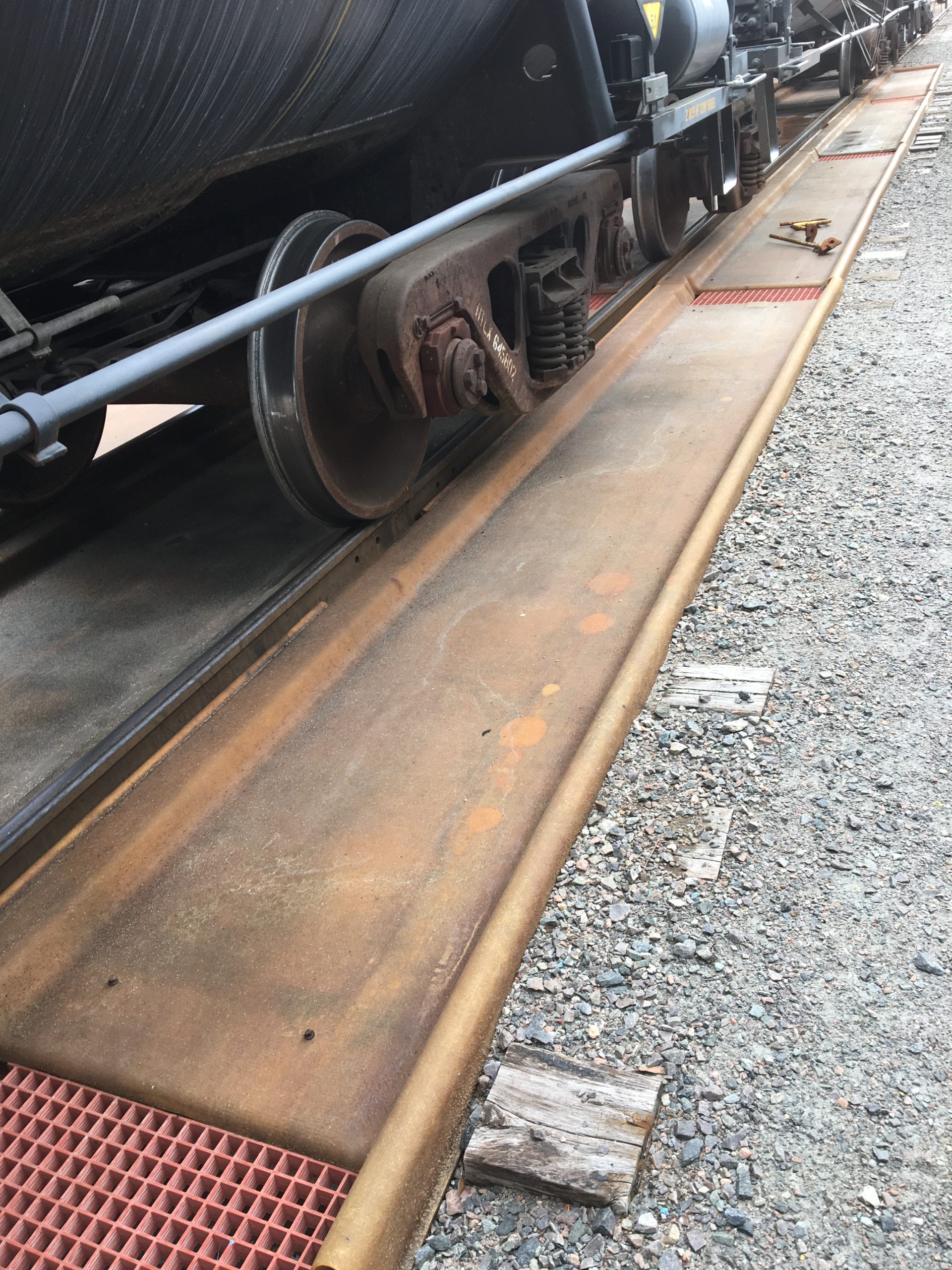

Track Collector Pan Systems Brochure



Need something specific? We specialize in custom solutions. Contact us below.
