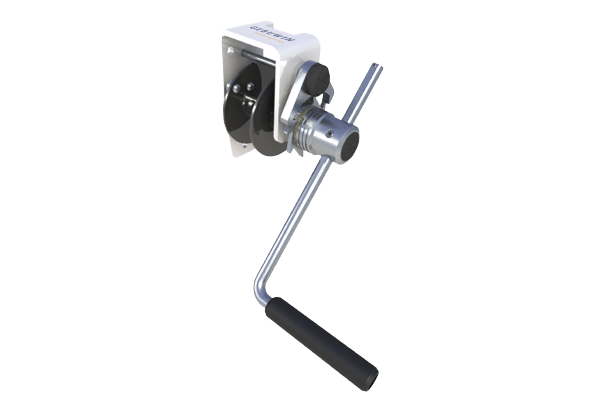

Spur gear hand winch 150 kg

Unique features

  • High speed due to spur gear transmission
  • Very compact and lightweight at 4 kg
  • Ideal for small jobs

Product information

This small spur gear winch is known for its high speed due to its direct drive. This fast and easy winch is a very compact lightweight of 4 kg and extremely suitable for smaller work.

Specifications

  • winch suitable for lifting and pulling in compliance with EN13157
  • static safety factor 4
  • load pressure brake with double ratchet system for safe stable hold of the load in any position
  • cable outlet upwards
  • adjustable crank
  • suitable for wall mounting
  • 1 layer of paint

Technical specifications

Capacity 1st layer 150 kg (331 lb)
Capacity 4th layer 98 kg (216 lb)
Capacity top layer 67 kg (148 lb)
Lifting speed 7,3 m/min (24 ft/min)
Rope diameter-Ø 4 mm (0.16 in)
MBL of cable 9 kN
Rope storage 1st layer 0,7 meter (2 ft)
Rope storage 4th layer 4,9 meter (16 ft)
Rope storage top layer 13,1 meter (43 ft)
Crank effort at full load 10 kg (22 lb)
Weight (without rope) 4 kg (9 lb)
Article number 77111010
Type name TL150
