Davit Crane SD900 zinc plated

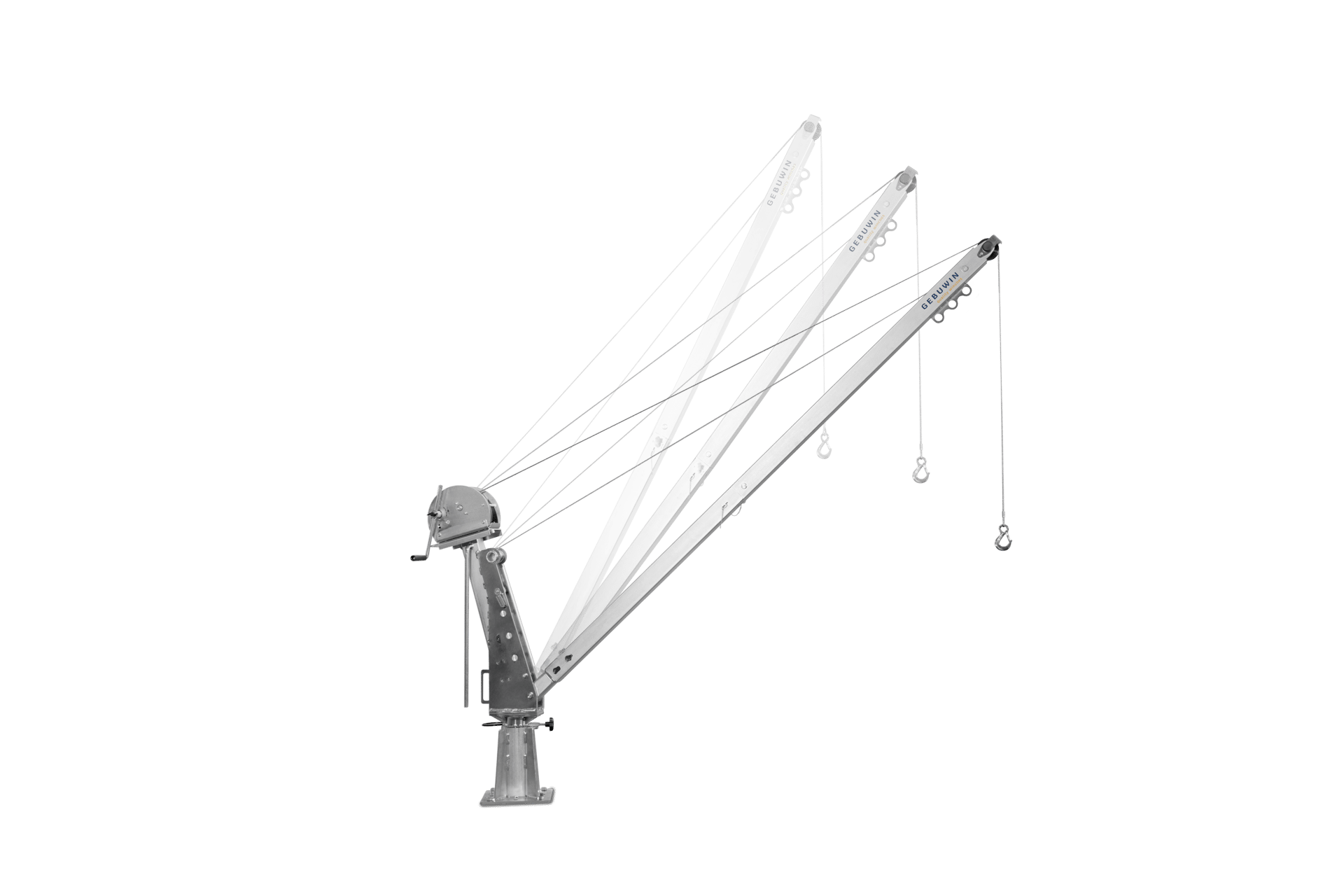

Davit Crane SD 900 Zinc Plated product image

Unique features

  • 3 positions with max 2 meters reach
  • up to 900 kg lifting capacity
  • locking mechanism for controlled operation

Product information

Discover the versatility of our davit crane! With three adjustable positions, this crane effortlessly adapts to your lifting needs. Depending on the position, the lifting capacity varies: up to 900 kg at 1 meter, 800 kg at 1.5 meters and 600 kg at 2 meters.

Thanks to the 360 degree rotation function, you can easily reach the desired ​​position, and the crane can be safely locked in a horizontal position for controlled lifting and lowering. The standard galvanized finish ensures durability, while you can attach various winches or even a chain hoist to the davit. Ideal for any project where strength and flexibility come together!

Specifications

  • adjustable reach: 1 meter, 1,5 meter and 2 meters
  • robust and safe lifting davit crane in compliance with EN13157
  • possible to lock swivel motion
  • davit crane consists of 4 parts – installion very fast
  • possible to rotate 360° with arm or belt on end of boom
  • possible to mount different winches on crane: CW700 & TL1500
  • standard zinc plated finish



Technical specifications

Capacity reach 1 meter (1st layer) 900 kg (1984 lb)
Capacity reach 1,5 meter (1st layer) 800 kg (1764 lb)
Capacity reach 2 meters (1st layer) 600 kg (1323 lb)
Lifting speed 1,2 m/min (4 ft/min)
Rope diameter-Ø 8 mm (0.31 in)
Rope storage top layer 33 meter (108 ft)
Weight excl. winch 49 kg (108 lb)
Weight TL1500 or CW700 27 kg or 14 kg (60 lb)
Article number 77002000
Type name SD900 EV
